TWT185D-7T

EU V

描述

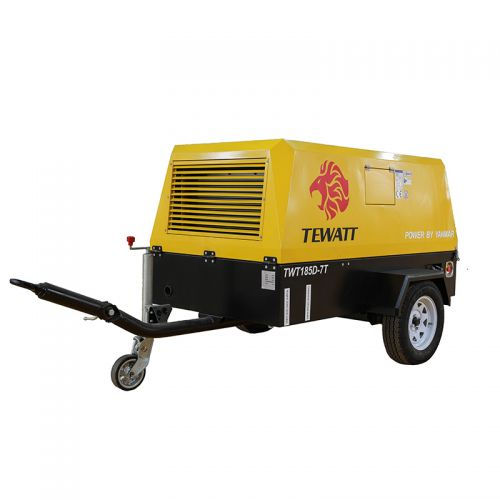

TWT185D-7T EU Stage V portable air Compressors are adopts TEWATT Industry frontier rotor for single stage air-ends. Japan YANMAR engines with EGR+DPF post-processing device for friendly environment. Match start protection parts to allow the machine start during normal situation. This model is application in Mining and construction (Road, trail-way, subway, etc), with features of high efficiency energy-saved, high reliable,easy maintenance and high cost-effective.

規格

型號

壓縮機級

風量 (CFM)

工作壓力(bar)

螺桿油量(L)

電池電壓 (V)

油箱容量 (L)

連接器尺寸*數量

車輪尺寸*數量

重量(kg)

TWT185D-7T

Single Stage

185

7

柴油發動機

Yanmar

發動機型號

4NV86CT-PSY

額定功率(HP/KW)

48/35.5

額定轉速/怠速 (rpm)

2200/1600

20

12

75

3/4"*2

Wheel

1200

氣缸

4

孔徑 (mm)

88

行程 (mm)

90

排量(L)

2.189

排放等級

EU V

尺寸(mm)

3400*1650*1500
