TWT1600D-25F
EU III / Tier 3
描述

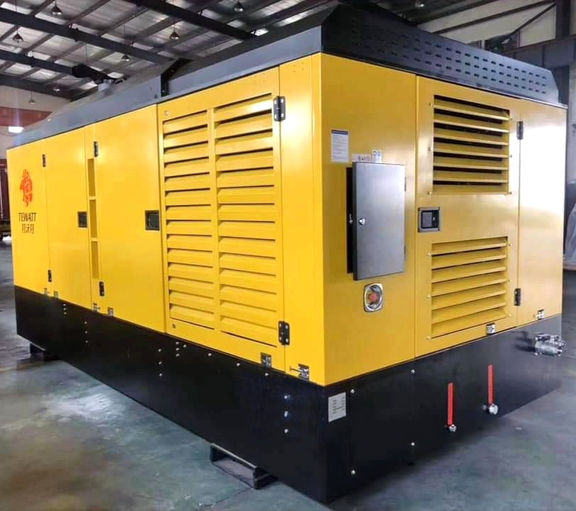

TWT1600D-25F diesel air compressors are equipped with high efficiency TEWATT two stage air-end, powered by VOLVO engine, Low buy and Maintenance cost, Stable and Durable performance, Fuel saved with global warranty. Tewatt mobile diesel air compressors always meet the harsh environment requirements of high temperature, high cold, high altitude & high dust etc. Suitable for water well drilling, geothermal air drilling, oil & gas exploration, mining & DTH drilling etc.
規格
型號
壓縮機級
風量 (CFM)
工作壓力（bar）
螺桿油量（L）
電池電壓 (V)
油箱容量 (L)
連接器尺寸*數量
車輪尺寸*數量
重量（kg）
TWT1600D-25F
Two Stage
1600
25
柴油發動機
Volvo
發動機型號
TAD1643VE-B
額定功率（HP/KW）
768/565
額定轉速/怠速 (rpm)
1800/1350
165
24
1000
G3/4" *1, G 2"* 1
Skid Mounted
7500
氣缸
6
孔徑 (mm)
144
行程 (mm)
165
排量（L）
16.1
排放等級
EU III / Tier 3
尺寸（mm）
4680*2200*2450
